Scale/4®

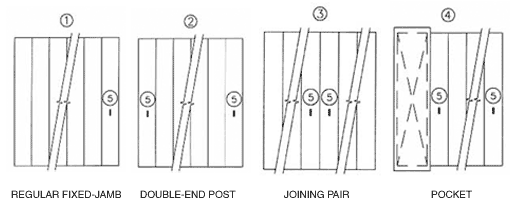

(1) REGULAR FIXED-JAMB partitions may be permanently attached at either jamb for single openings. If security features are to be used, either right-hand or left-hand stack should be specified with the security type (cylinder, privacy turn or emergency release) to be installed on the face or reverse side of the partition indicated on the drawings. (2) DOUBLE-END POST partitions may be latched at both jambs and may be stacked at either end of the opening. Double-End Post partitions may be used for single openings, joining pairs, or for multiple units in one opening. Double-End Post partitions can be pocket recessed and must be specified if curved switches are installed. (3) JOINING PAIR OF FIXED-JAMB partitions may be permanently attached at both jambs for single openings. (4) POCKET RECESSED partitions may be supplied with a Double-End Post or a Sliding Jamb for single openings or for joining pairs of partitions. (5) SECURITY FEATURES may be installed to prevent opening of the partitions with keyed cylinders (standard or optionally masterkeyed), privacy turns or emergency (coin-slot) releases. FURTHER INFORMATION. All dimensions shown in parentheses are millimeters. Scale N.T.S.
